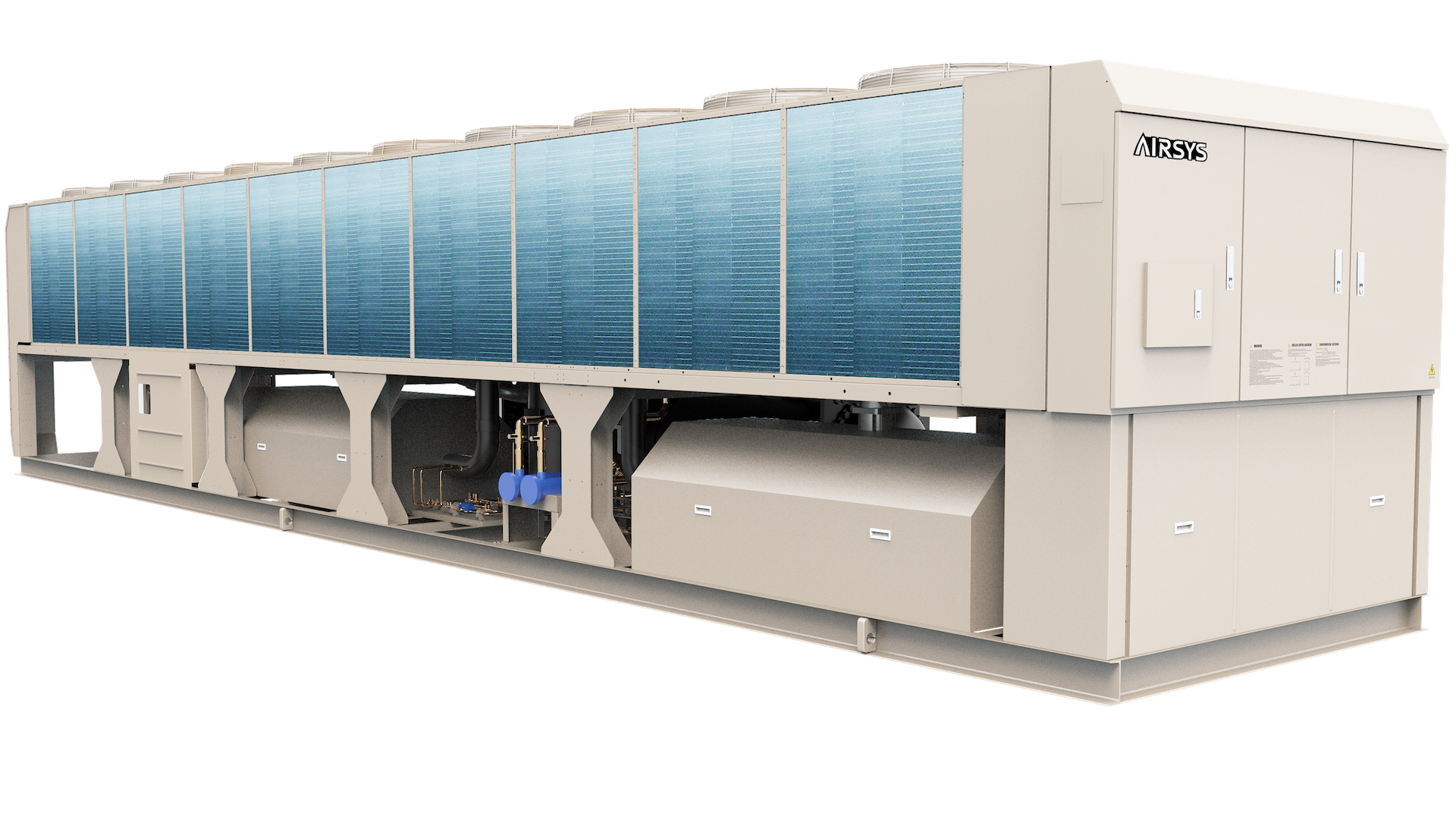

CRITICOOL air-cooled chiller is specially designed for data center or other mission critical cooling applications. The cooling capacity range 65kW~1500kW, will the possibility to add extra cooling coil, or evaporative cooling on the condenser side.
• Components designed for uninterrupted operation
• Highly standardized, modular design.
• A variety of devices and logic to protect the unit from potential failure.

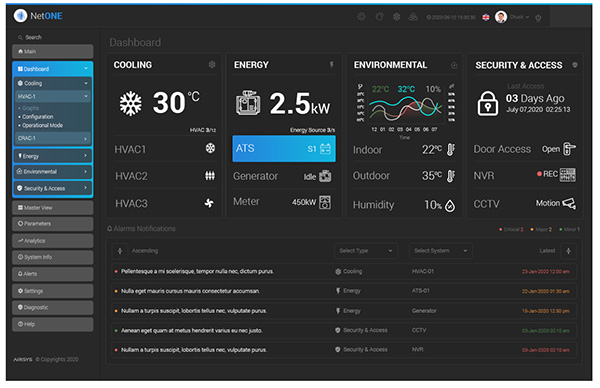

• PLC control provides strong vitality and scalability for CRITICOOL refrigerators.
• Multiple communication protocol options (modBUS as stardard)
• Group control (up to 16 pc)
• High IPLV
• EC Fan
• Stepless compressor load control
• High efficiency heat exchanger
• Adiabic cooling to reducing condensing temperature

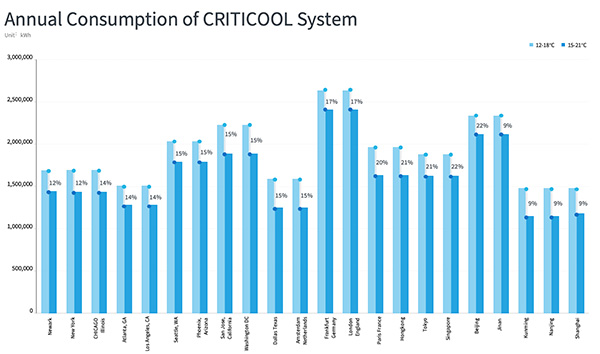

The chilled water temperature and the difference between supply and return water of CRITICOOL are much higher than convention chiller (20/35C, 15C delta), this will significantly increase the chiller efficiency, maximize the free cooling contribution to the system and reducing the size of pumps and piping system.
